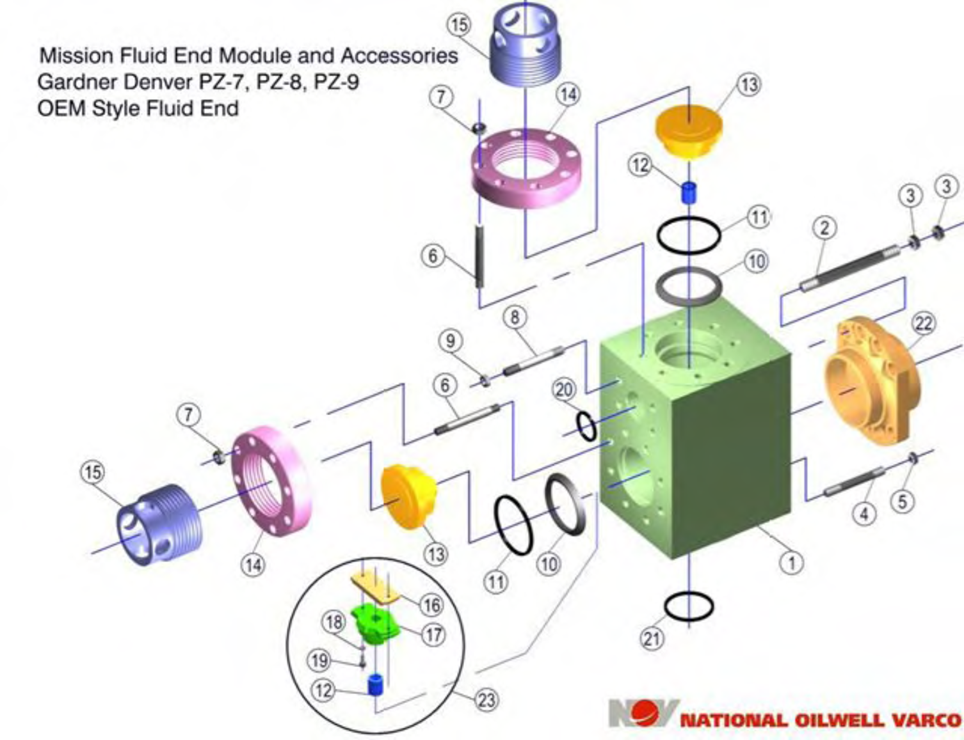

GARDNER DENVER PZ-7, PZ-8, PZ-9				QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM #	OEM PART #	MISSION PART #	DESCRIPTION
1		FEMPZ789CA	ASSY, COMPLETE FLUID END MODULE  (INCLUDES ITEMS 1-22)	3
1A	200PZL029F	FEMPZ789	MODULE, STUDDED FLUID END (INCLUDES ITEMS 1A-9)	3
	205PZL029D
1B		80721012	MODULE, STUDDED FLUID END MADE FROM 4135 MATERIAL (INCLUDES ITEMS 1B-9)
2	79L188	PZ789LCS	STUD, FRAME & LINER CLAMP	24
3	50B36	6300200	NUT, FRAME & LINER CLAMP STUD	48
4	79L73	PZ789GPFS	STUD, FRAME	12
5	50AQ30	PZ789PFSN	NUT, FRAME STUD	12
6	79AL6	PZ789TRS	STUD, VALVE COVER	48
7	50B34	PZ789TRSN	NUT, VALVE COVER STUD	48
8	202PZL110	PZ789DMS	STUD, DISCHARGE MANIFOLD	12
9	50B34	PZ789TRSN	NUT, DISCHARGE MANIFOLD STUD	12
10	2011861	PZ789EXPR	RING, VALVE COVER GASKET EXPANDER	6
11	2011862	07916749	GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)	6
12	2007674	PZ789VGI	BUSHING, VALVE GUIDE	6
13	2011860	PZ789VC	COVER, VALVE	6
14	2011699	PZ789FLG	RING, VALVE COVER THREADED (2 1/2" THICK)	6
14A		PZ789HFLG	RING, HEAVY VALVE COVER THREADED (3" THICK)	6
15	2011857	PZ789CAP	CAP, VALVE COVER LOCK	6
16	2011701	PZ789PL	PLATE, RETAINER	6
17	2011700	PZ789LVG	GUIDE, LOWER VALVE SUCTION	3
18	95W2	PZLVGAWASHER	WASHER, VALVE GUIDE LOCK	6
19	655EE06S	PZLVGABOLT	SCREW 1/2"x1 3/4" 316SS HX HD C/S	6
20	25AL35	07916747	GASKET, DISCHARGE MANIFOLD	3
21	25G41	07923283	GASKET, SUCTION MANIFOLD	3
22	1PV14	PZ789LC	CLAMP, LINER	3
23	2011706	PZ789LVGA	ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19)	3
24	75A74N	700044111	CAPSCREW, SUCTION MANIFOLD - NOT SHOWN	24
25		7619066	WASHER, SUCTION MANIFOLD CAPSCREW LOCK	24
		07924509	MODULE SEAL KIT:  (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET)	3
