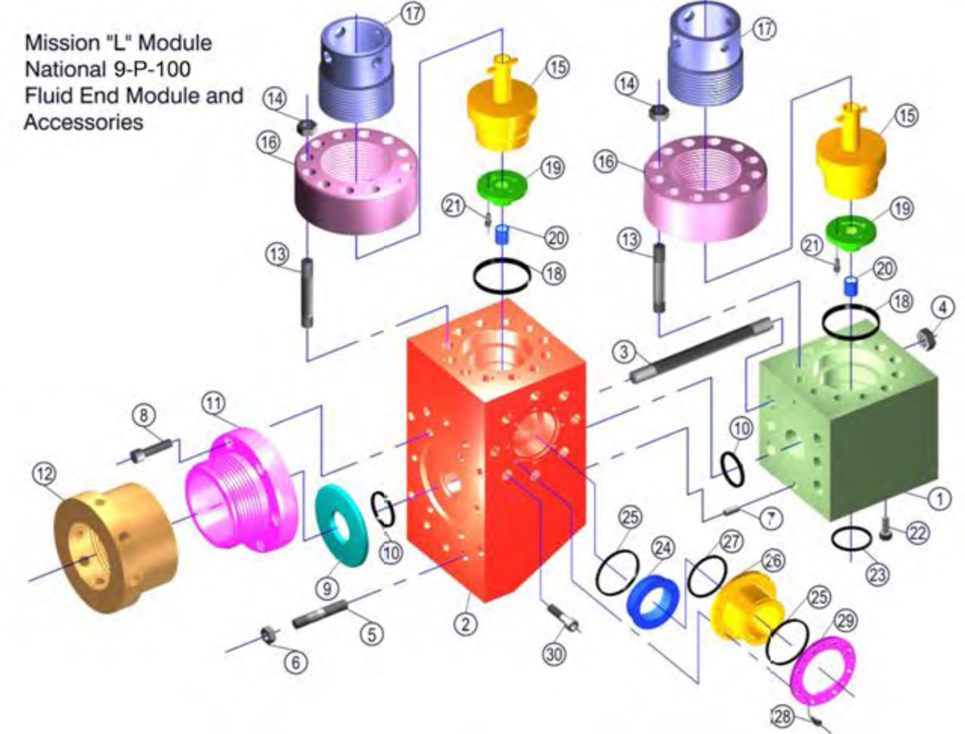

MISSION "L" MODULE FOR NATIONAL 9-P-100  QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # SW PART # MISSION PART # DESCRIPTION
  8495-A 80706030 ASSY, FLUID END COMPLETE F/ NATIONAL 9-P-100 (INCLUDES ITEMS 1-21)  3
1 8495-1D 80706000 MODULE, STUDDED DISCHARGE (INCLUDES ITEMS 1,3-6,13 & 14) 3
2 8467-2S 80703001 MODULE, STUDDED SUCTION (INCLUDES ITEMS 2, 13-14) 3
3 4017-1 80703009 STUD, DISCHARGE TO SUCTION MODULE (TORQUE 2775 ft. LBS.) 18
4   0-7601-0630-17 NUT, DISCHARGE TO SUCTION MODULE STUD 18
5 4015-51 80706001 STUD, POWER FRAME (TORQUE 2400 ft. LBS.) 24
6   6300200 NUT, POWER FRAME STUD 24
7 8488-5 6511416 DOWEL PIN 6
8 4017-8 80703014 CAPSCREW, LINER RETAINER FLANGE (TORQUE 750 ft. LBS.) 18
9 8495-3 80703008 PLATE, WEAR 3
10 2988 1290344 SEAL, MODULE & WEAR PLATE - RUBBER (SEE DATASHEET FOR ALT MATERIALS)  6
11 6495 80703006 BUSHING, LINER RETAINER 3
12 6595 80703007 NUT, LINER RETAINER 3
13 4015-5 80703011 STUD, THREADED RING (TORQUE 1,775 ft LBS.) 72
14   6300220 NUT, THREADED RING STUD 72
15 4667A 80703005 PLUG, VALVE 6
16 4467 80703003 RING, THREADED 6
17 4567 80703004 GLAND, THREADED 6
18 P-128 07207128 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)   6
19 4760-3R 80703002 GUIDE, VALVE 6
20 4700-I PZ789VGI* BUSHING, VALVE GUIDE  6
21 4016-98 80703013 SCREW, VALVE GUIDE  12
22 4018-19 7000484 BOLT, SUCTION MANIFOLD HEX (TORQUE 500 ft. LBS.) 24
22A   7602074 WASHER, LOCK (NOT SHOWN) 24
23   1590051 SEAL, SUCTION MANIFOLD 3
24   NAT8PDSMA ADAPTER, DISCHARGE CONNECTOR 2
25   2410031427 PACKING, DISCHARGE CONNECTOR & DISCHARGE ADAPTER  4
26   NAT8PDSMC CONNECTOR, DISCHARGE 2
27   2410031348 PACKING, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
28   700030511 CAPSCREW,  DISCHARGE CONNECTOR 16
28A   7619050 WASHER, DISCHARGE CONNECTOR SCREW (NOT SHOWN) 16
29   1290175 BACK UP RING, DISCHARGE CONNECTOR 2
30   7006607 CAPSCREW, DISCHARGE SPACER FLANGE 16
31   80703012 PLATE, N.O.I LOGO 3
32   7178088 SCREW,DRIVE #10 X3/8" FOR LOGO PLATE (NOT SHOWN) 12
* - NOV manufactured valve guide insert for use with NOV manufactured valve guide ONLY. If using a SW manufactured valve guide, use one of the following P/Ns:
1. OWVGI (urethane)
2. 20200004 (nitrile)
